High Speed Granulator

  • High Speed Granulator
High Speed Granulator

High Speed Granulator

Granulator Introduction:

G series strong Granulator from United Tech is designed to meet high production fragmentation and large item broken at once production needs heavy recovery equipment. Its mainly used for broken plastic, rubber and metal and other materials. As a kind of high efficiency, low power, low noise and waste recycling equipment, this series of Crusher machine shell is solid welded steel structures, appearance, outside the box, washing, tool change, repairs, maintenance is very convenient. Can be different according to the crushing material cutter blade structure, and can be equipped with pneumatic aggregate devices according to customer demand and soundproofing structure, economical, practical, easy operation, long life and other advantages.

G series granulator in good appearance, is welded by rigid steel structure, machine case half -and -half opening, which makes convenience to clean, remove knives and maintenance, blade roller is to be chosen by different crushing material. Optional air conveying collecting units and sound-proofed execution are at user’s request.

Granulator Advantages:

* Compact design saves space

* Split box design, easy to replace the blade

* High safety factor bearings to reduce the chance of bearing damage caused by improper use

* The side plates at both ends of the cutter roller are provided with a replaceable wear layer

* The cutter roller and the box body are processed as a whole to ensure the shear clearance accuracy between the moving and fixed knives

* Independent control of electrical box

* A variety of structure of the cutter roller is available, according to the characteristics of the material to choose the appropriate structure of the rotor, can effectively improve the crushing efficiency, and prolong the service life of the equipment

* Various forms of screens with different apertures are available for customers to choose from

* Multiple safety switch protection, the whole machine meets the national safety standard

Granulator Application :

The crushable materials include: nozzle, rubber head, PET bottle, paper, cardboard, electronic version, film, gate, pipe, profile, solid material, sheet, nylon, rubber, plastic bottle, etc.

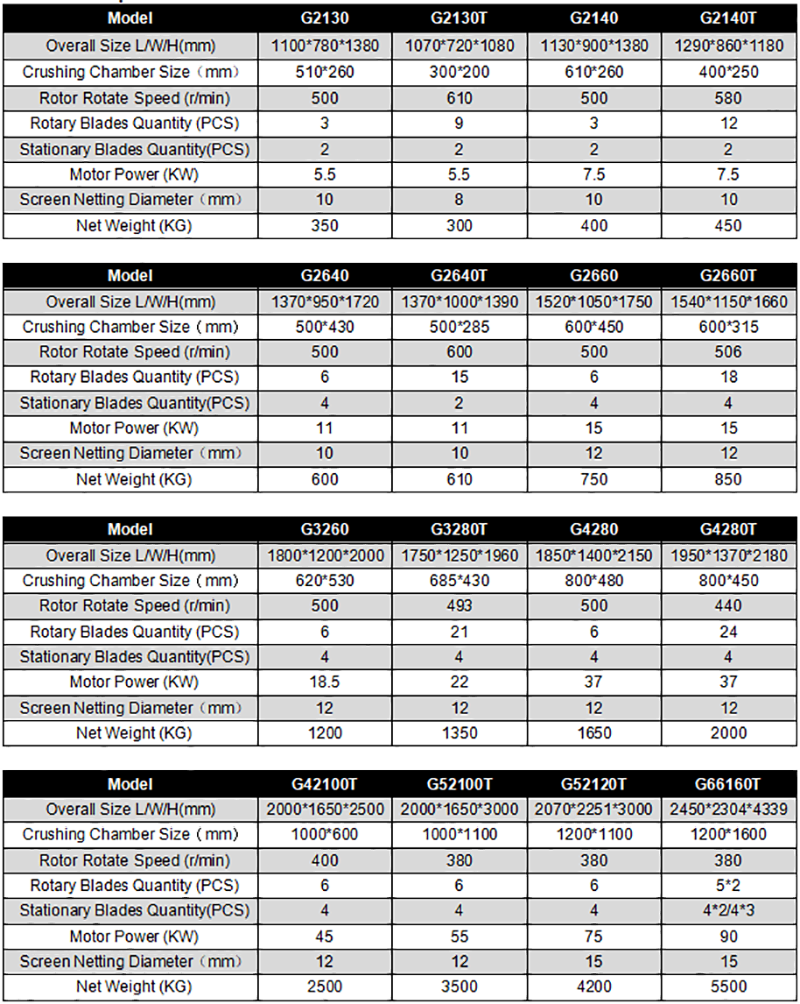

Granulator Specification

 Note:

1. The voltage about the power supply can be selected by the customer’s specific requirements.

2. The shredder capacity can be influenced by the material composition and output size.

The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
