Metal Crusher


Metal Crusher
 Introduction:

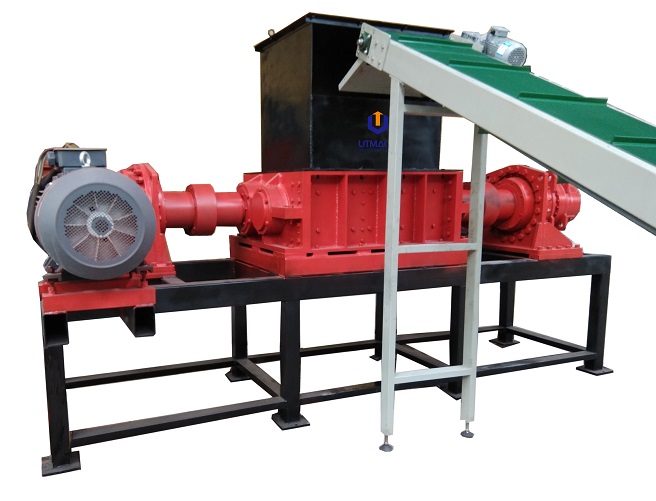

In the era of automatic equipment, our UTMACH metal crusher is commonly used in all kinds of metal reduction harmless equipment. Our metal crusher from United Tech Machinery is a new type of solid waste crusher to the environmental protection It is high efficiency and energy saving, developed with European technology. It has high torque and low noise, mainly for crushing and reducing capacity of large and high hardness materials.

Metal Crusher Applications:

Metal material :Aluminum material, motor shell, oil drum, waste vehicle crust ,ferrous waste, waste steel plate, cast iron, wrought iron, steel bar, cans, TV, washing machine, refrigerator shell, computer shell, industrial oil drum, large diameter iron drum, packaging drum, car shell, bicycle, motorcycle,  copper and scrap iron sheet, etc.

Features of Metal Crusher

1, sharp blade, suitable for high hardness of scrap metal;

2, stable and compact structure, easy operation and maintenance,

3. The whole machine is made up of structure, easy to move;

4, the whole process PLC control, automatic operation.

  1. Alloy steel quenched blade, wear resistant.



    Specification of Metal Crusher

Model

D3280

D32100

D32120

D32150

D35120

D35150

Rotor Blade Diameter(mm)

650×800

650×1000

650×1200

650×1500

680×1200

680×1500

Rotor Rotate Speed (r/min)

320

320

320

320

350

350

Rotor Blade Quantity (PCS)

20

25

30

38

30

38

Rotor Blade Thickness(mm)

40

40

40

40

40

40

Cutting Chamber size (mm)

4000

5200

5400

5700

6000

6500



Model

D40100

D40120

D40150

D40180

D4280

D42100

D43120

Rotor Blade Diameter(mm)

825×1000

825×1200

825×1500

825×1800

890×800

890×1000

900×1200

Rotor Rotate Speed (r/min)

400

400

400

400

430

430

430

Rotor Blade Quantity (PCS)

20

24

30

36

22

26

24

Rotor Blade Thickness(mm)

50

50

50

50

40

40

50

Cutting Chamber size (mm)

8000

8500

10000

12000

6000

7500

8500



Model

D43150

D43180

D45120

D46180

D52120

D52150

D52160

Rotor Blade Diameter(mm)

900×1500

900×1800

930×1200

950×1800

1100×1200

1100×1500

1100×1600

Rotor Rotate Speed (r/min)

430

430

450

460

520

520

520

Rotor Blade Quantity (PCS)

30

36

20

30

20

30

20+10

Rotor Blade Thickness(mm)

50

50

60

60

60

50

60+40

Cutting Chamber size (mm)

11000

13500

12000

12500

12000

14000

13000



Model

D52180

D62140

D62180

D62210

D72180

D72240

D72250

Rotor Blade Diameter(mm)

1100×1800

1300×1400

1300×1820

1300×2100

1524×1804

1524×2400

1524×2500

Rotor Rotate Speed (r/min)

520

620

620

620

743

743

743

Rotor Blade Quantity (PCS)

30

20

26

30

24

30

25

Rotor Blade Thickness(mm)

60

70

70

70

75

80

100

Cutting Chamber size (mm)

16000

15000

20000

23000

24000

26000

27000



Note:

  1. The voltage about the power supply can be selected by the customer’s specific requirements.

  2. The shredder capacity can be influenced by the material composition and output size.

    The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.



    Welcome to contact with us to get more details product information. We are glad to introduce you the most suitable machine, develop the most reasonable proposal as your production requirements. Our task is to support our customers who are in the solid waste & refuse management industries to get a higher production efficient, improve their product quality and value so that they can get a greatest progress in the keen competition.
